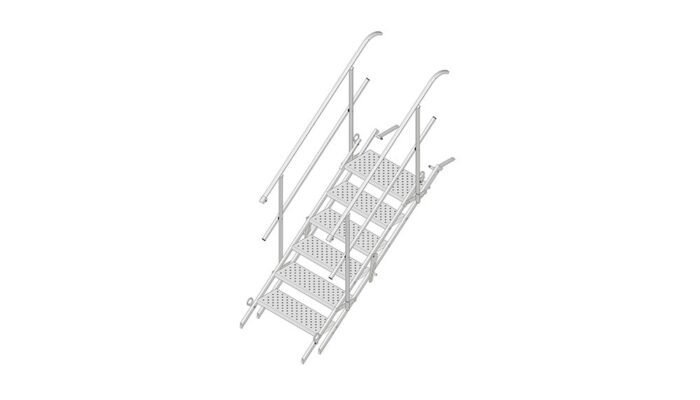

Stairway 700 is an adjustable site stair that provide safe temporary access for movement around construction sites during work. It is available in six lengths and can be easily connected together when longer lengths are required. Stairway 700 is extremely versatile delivering safe site movement onto temporary works structures, between floor levels or to access and egress excavations and embankments.

Adjustable site stairs are folded flat for transport and storage, and assembly is easy and fast for two people, even when connecting stair units together. They are delivered with two handrails, which automatically adjust to the inclination of the stairway angle between 30° and 55°. The steps always remain horizontal, whatever angle is achieved.

Adjustable site stairs are available in six lengths which can be easily connected together when longer lengths are required, offering heights of up to 4,75 m from a single stairway. These are manufactured in two standard widths, 700 mm and 1000 mm. Adjustable site stair 700 has an overall width of 800 mm with an effective access width of 700 mm. Adjustable site stair 1000 has an overall width of 1100 mm with an effective access width of 1000 mm.

Manufactured from galvanized steel sections with steps using anti-slip expanded metal to reduce the possibility of falling and having the added benefit of removing dirt from boots. Four stairway feet ensure high stability.

Adjustable site stairs satisfy the access requirements of European Standard EN 12811.

PRODUCTS:

Stairway 700, 3 steps
Art. No. 5060003
Dimensions 1640 x 800 mm. Height 510–835 mm. Ground clearance 1085–785 mm.

Stairway 700, 6 steps
Art. No. 5060006
Dimensions 2450 x 800 mm. Height 920–1505 mm. Ground clearance 1795–1255 mm.

Stairway 700, 9 steps
Art. No. 5060009
Dimensions 3260 x 800 mm. Height 1320–2160 mm. Ground clearance 2485–1715 mm.

Stairway 700, 12 steps
Art. No. 5060012
Dimensions 4070 x 800 mm. Height 1725–2825 mm. Ground clearance 3190–2180 mm.

Stairway 700, 15 steps
Art. No. 5060015
Dimensions 4610 x 800 mm. Height 2130–3490 mm. Ground clearance 3890–2645 mm.

Stairway 700, 18 steps
Art. No. 5060018
Dimensions 5420 x 800 mm. Height 2535–4155 mm. Ground clearance 4590–3110 mm.

Please refer to the data sheets for complete and concise information.

Product sheet

User manual

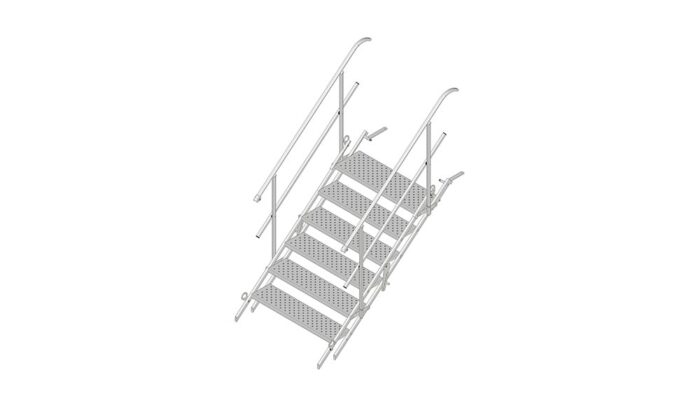

Stairway 1000 is an adjustable site stair that provide safe temporary access for movement around construction sites during work. It is available in six lengths and can be easily connected together when longer lengths are required. Stairway 1000 is extremely versatile delivering safe site movement onto temporary works structures, between floor levels or to access and egress excavations and embankments.

Adjustable site stairs are folded flat for transport and storage, and assembly is easy and fast for two people, even when connecting stair units together. They are delivered with two handrails, which automatically adjust to the inclination of the stairway angle between 30° and 55°. The steps always remain horizontal, whatever angle is achieved.

Adjustable site stairs are available in six lengths which can be easily connected together when longer lengths are required, offering heights of up to 4,75 m from a single stairway. These are manufactured in two standard widths, 700 mm and 1000 mm. Adjustable site stair 700 has an overall width of 800 mm with an effective access width of 700 mm. Adjustable site stair 1000 has an overall width of 1100 mm with an effective access width of 1000 mm.

Manufactured from galvanized steel sections with steps using anti-slip expanded metal to reduce the possibility of falling and having the added benefit of removing dirt from boots. Four stairway feet ensure high stability.

Adjustable site stairs satisfy the access requirements of European Standard EN 12811.

PRODUCTS:

Stairway 1000, 3 steps
Art. No. 5061003
Dimensions 1640 x 1100 mm. Height 510–835 mm. Ground clearance 1085–785 mm.

Stairway 1000, 6 steps
Art. No. 5061006
Dimensions 2450 x 1100 mm. Height 920–1505 mm. Ground clearance 1795–1255 mm.

Stairway 1000, 9 steps
Art. No. 5061009
Dimensions 3260 x 1100 mm. Height 1320–2160 mm. Ground clearance 2485–1715 mm.

Stairway 1000, 12 steps
Art. No. 5061012
Dimensions 4070 x 1100 mm. Height 1725–2825 mm. Ground clearance 3190–2180 mm

Stairway 1000, 15 steps
Art. No. 5061015
Dimensions 4610 x 1100 mm. Height 2130–3490 mm. Ground clearance 3890–2645 mm.

Stairway 1000, 18 steps
Art. No. 5061018
Dimensions 5420 x 1100 mm. Height 2535–4155 mm. Ground clearance 4590–3110 mm.

Please refer to the data sheets for complete and concise information.

Product sheet

User manual
