Scissorsafe is an anchorage system designed specifically to prevent falls from height during the construction of concrete structures. This personal fall protection anchor is unique because it deploys into concrete voids that are cast using Scissorsafe void formers (product code SSAN002).

A Cast-in anchor system incorporated into the design of the structure offers safety and economical benefits by removing the need to drill for anchor points or load-test friction reliant anchors before a safety system can be connected to them. Anchor points are a vital part of a personal fall protection system. they are the critical component that connect Lifelines, Lanyards, Fall Arrestors and Rescue Kits to the permanent structure.

Scissorsafe anchorage points are created by nailing a two part plastic mould insert onto the horizontal formwork which when removed reveals overhead anchorage points. Scissorsafe anchor tools have a unique mechanical action that opens within the concrete void and is locked by the karabiner on the connecting device.

Scissorsafe anchorage devices are economical as they are reusable throughout the project. Concrete drilling is eliminated reducing working at height, dust, noise and time. The system is certified to BS EN795 class B- portable anchorages, independently assessed under strict conditions to comply with the requirements of European Conformity.

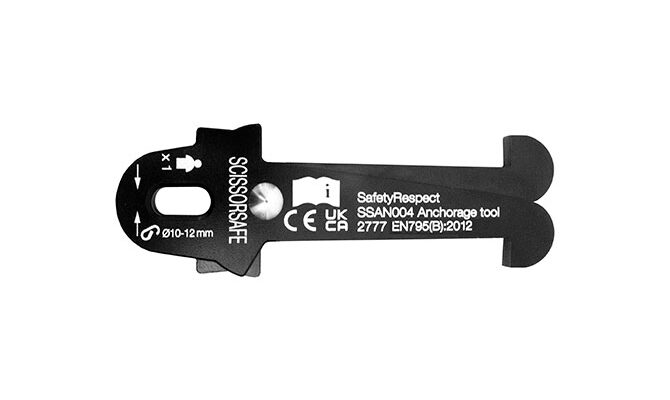

SCISSORSAFE ANCHOR
Art. no. SSAN004

SCISSORSAFE VOID FORMER
Art. no. SSAN002

Product sheet

USER MANUAL
Scissorsafe user manual
Scissorsafe inspection card

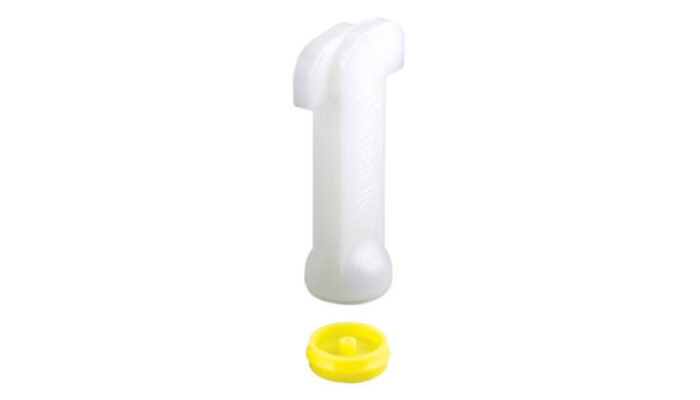

The Scissorsafe Void Former is an expendable plastic cast-in component used to form anchorage points in precast or insitu poured concrete. The void former consist of two parts. A 35 mm diameter circular disk is nailed or screwed to horizontal formwork in pre-designed locations. After that a tee shaped mould is pushed firmly onto the disk to form an inverted void in the concrete.

Scissorsafe anchors are inserted and deployed in this void when fall arrest or work restraint anchorage is required. The unique nature of this anchorage system means that the anchor isn’t relying own friction to support the fall arrest system connected to it. Upon completion of the structure, Void formers can be closed off with grout or covered with a Scissorsafe plastic cover cap. These are generally used to disguise void former holes when the anchorage point is to be used for maintenance or repair work.

Product code SSAN002
