The Wall fix for Catch fan is for use on vertical surfaces such as walls.
• 5050003_W
• 4.7 kg
• EN 1263
• Hot-dip galvanised (HDG)
• 575 x 120 mm
Wall fix
Category: Catch fans
Slab fix
The Slab fix for Catch fan is for use on horizontal surfaces at the slab edge.
• 5050003_S
• 4.7 kg
• EN 1263
• Hot-dip galvanised (HDG)
• 430 x 270 mm
Scaffold fix
The Scaffold fix for Catch fan is for use on scaffolds.
5050004
2.4 kg
EN 1263
hot-dip galvanised (HDG)
270 x 215 mm
Catch fan 6 m

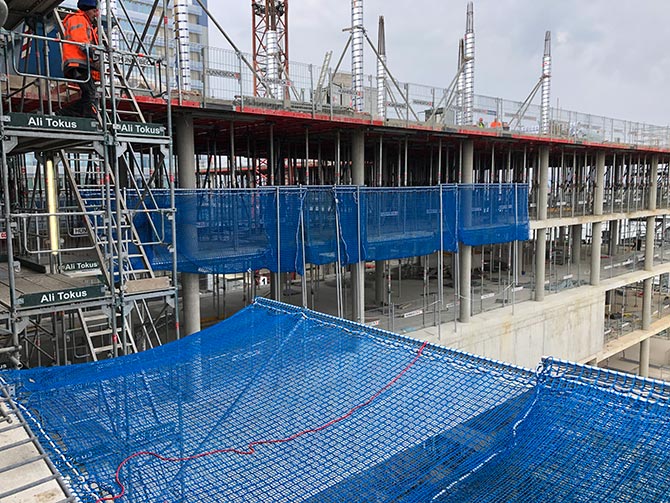

Our Catch Fans provide reliable protection against falling objects during the construction period and catch workers who have accidents. Made up of just a few components, the Catch Fan not only protects construction site personnel, but also the public, depending on the situation and application. Due to the 3m cantilever, the Catch Fan in front of the building creates an appropriate protection zone against falling objects, such as materials, tools or construction debris. In addition, it is intended to cushion falls of injured construction site personnel and to enable rescue.
Due to its application possibilities, the Catch Fan can be adapted to a wide variety of construction situations. It can also be used in confined spaces without any problems, as the Catch Fan can be folded up towards the façade and be secured, e.g. to allow material transport near the ceiling edge.
The safety net has a mesh size of 60×60 mm. The standard scope of delivery of the Catch Fan also includes a fine-mesh net with a mesh size of 20×20 mm. It is firmly connected to the safety net to protect against falling small objects. On customer request, the net structure can additionally be provided with a third layer of a 2×3 mm dust protection net.
The Catch Fan 6 m is the largest one in our range of catch fans with a net surface of 18 m².
• 5056000
• 91 kg
• EN 1263
• hot-dip galvanised (HDG), aluminium
• 6000 x 3000 mm
Catch fan 4 m
Our Catch Fans provide reliable protection against falling objects during the construction period and catch workers who have accidents. Made up of just a few components, the Catch Fan not only protects construction site personnel, but also the public, depending on the situation and application. Due to the 3m cantilever, the Catch Fan in front of the building creates an appropriate protection zone against falling objects, such as materials, tools or construction debris. In addition, it is intended to cushion falls of injured construction site personnel and to enable rescue.
Due to its application possibilities, the Catch Fan can be adapted to a wide variety of construction situations. It can also be used in confined spaces without any problems, as the Catch Fan can be folded up towards the façade and be secured, e.g. to allow material transport near the ceiling edge.
The safety net has a mesh size of 60×60 mm. The standard scope of delivery of the Catch Fan also includes a fine-mesh net with a mesh size of 20×20 mm. It is firmly connected to the safety net to protect against falling small objects. On customer request, the net structure can additionally be provided with a third layer of a 2×3 mm dust protection net. The Catch Fan 4m has a net surface of 12 m².
• 5054000
• 67 kg
• EN 1263
• hot-dip galvanised (HDG), aluminium
• 4000 x 3000 mm
Safety fan wall
SafetyRespect Safety fan system for walls is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system is adapted to be installed on a vertical surface without any need of cranes and with the edge protection mounted freestanding on the working area.
Art. No. 914016
Product sheet
Safety fan scaffolding
SafetyRespect Safety fan system for scaffolding is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system is adapted to be installed on most existing scaffold brands without any need of cranes and with the possibility of integrating SafetyRespect’s edge protection system. Pay attention to the increasing loads on the scaffolding.
Art. No. 914015
Safety fan slab
The Safety fan system for slabs is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system can be installed without any need of cranes and designed to be installed on floor structures, with the possibility of directly integrating SafetyRespect’s edge protection system.
Art. No. 914014
