Joint pin is used for jointing aluminum pipes that is used as temporary edge protection at construction sites.
Art. No. 914152
Joint pin
Category: SR accessories

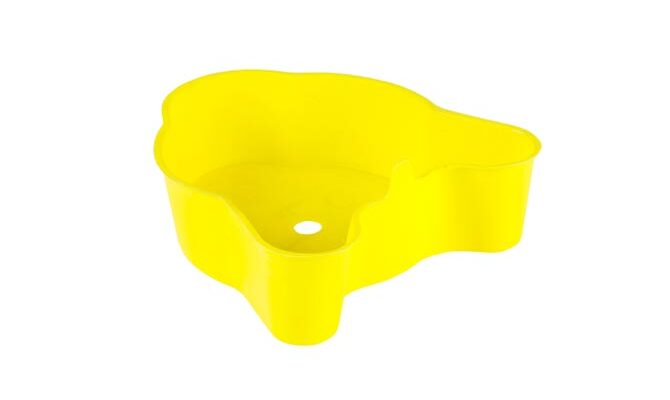

Cast protection
Cast protection a temporary edge protection component that is used when high quality level floor slabs are required. A reusable plastic former which is anchored to concrete and protects the Post foot during the application of floor levelling compound or liquid screed.
When casting on top of concrete slab structures the Barrier can be raised on the post in several steps up to 310 mm with maintained safety as the post locking is fully functional. Upon completion, the edge protection and casting former is removed leaving a clean hole to 50 mm in depth for grout filling.
• Can also be used with Socket base.
• Stackable.
• Material HDPE.
Art. No. 911140
Product sheet
Barrier stillage vertical
Stillage for storing and transporting safety barriers. It is important that the logistics at a construction site function and that the edge protection is easily accessible when required. Our products are delivered in stacking stillages that minimise the area needed. The stillages can be lifted either by forklift or crane. Lifting instructions are available.
• Maximum load 800 kg
• Dimensions: L 1030 mm, W 910 mm, H 1450 mm
Art. No. 981111
Post stillage
Stillage designed for storing and transporting edge protection posts. It is important that the logistics at a working site function and that the edge protection is easily accessible when required. Our products are delivered in stacking stillages that minimise the area needed. The stillages can be lifted either by forklift or crane. Lifting instructions are available.
• Adapted to Post 1,3 m
• Maximum load 800 kg
• Dimensions: L 1030 mm, W 910 mm, H 650 mm
Art. No. 981120
Box stillage
Box stillage for storing and transporting edge protection products. It is important that the logistics at a working site function and that the edge protection is easily accessible when required. Our products are delivered in stacking stillages that minimise the area needed. The stillages can be lifted either by forklift or crane. Lifting instructions are available.
• Maximum load 800 kg
• Dimensions: L 1030 mm, W 910 mm, H 650 mm
Art. No. 981130
Alu pipe
Aluminum pipe to use as a compliment to our edge protection systems.
Alu pipe 6 m Art. no. 910114
Alu pipe 5 m Art. no. 910120
Alu pipe 4 m Art. no. 910115
Alu pipe 3 m Art. no. 910116
Alu pipe 2 m Art. no. 910117
Alu pipe 1 m Art. no. 910118
Barrier stillage 2,6 l
Barrier stillage adapted to Barrier 2,6 L. It is important that the logistics at a working site function and that the edge protection is easily accessible when required. Our products are delivered in stacking stillages that minimise the area needed. The stillages can be lifted either by forklift or crane. Lifting instructions are available.
• Maximum load 800 kg
• Dimensions: L 2790 mm, W 1245 mm, H 840 mm
Art. No. 981109
Strap
Very strong and durable straps for attaching, fastening and strapping edge protection equipment at construction sites.
• Great range of application.
• Three different lengths.
Strap 0,6 m. – Art. no. 919206
Strap 1,5 m. – Art. no. 919215
Strap 5,0 m. – Art. no. 919250
Ground support plate
Ground support plate is used for creating temporary blockings and safe access routes in work environments at construction sites. The Ground support plate can be used in combination with SafetyRespect’s edge protection products in order to create blockings, safe access routes, etc. Socket base, Post 1,3 m and Barrier 2,6 or Adjustable link bars are installed on the ground support plate. This solution can be quickly installed and is easy to move and adjust when required.
We also have a Guard rail system designed for demanding environments. The system consists of Guard rail, Barrier and Fence in different lengths with several types of ground support.
• Three mounting points M16.
• Zinced and powder coated.
• Weight 7,9 kg.
• 50 pieces delivered in stacking stillage.
Art. No. 912320
