Inclined bracket for edge protection that facilitates installation of external panel wall. The ordinary attachment for the balcony railing can be used for installing the Balcony bracket. After that Post 1,3 m together with Barrier 2,6, Barrier 1,3 or Barrier 1,95 are installed in order to adapt the edge protection according to the dimensions of the balcony.
• Fits all common balcony attachments.
• M10 or M12.
• Hot dip galvanized.
• Weight 1,3 kg.
Art. No. 912160

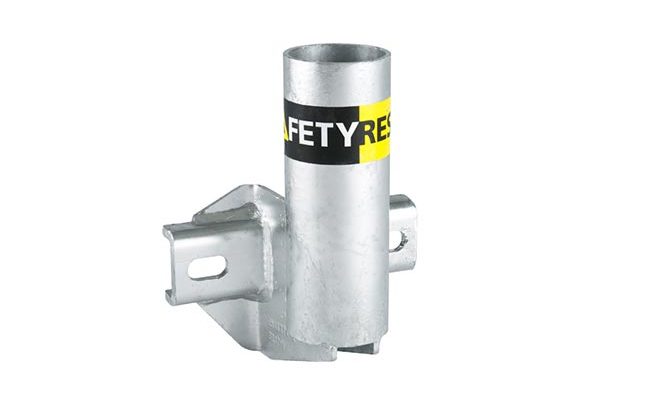

The ordinary attachment for the balcony railing can be used for attaching edge protection. Here you can use Balcony bracket with Post 1,3 m together with Barrier 2,6, Barrier 1,3 or Barrier 1,95 in order to adapt the edge protection according to the dimensions of the balcony.
• Fits all common balcony attachments.
• M10 or M12.
• Hot dip galvanized.
• Weight 1,3 kg.
Art. No. 912150
Console brackets are used as attachment for edge protection on slab edges to create free working space. It has several installation alternatives and adjustable or stationary position.
• Installed with Socket base.
• Hot-galvanised.
• Weight 1,4 kg.
Art. No. 912116
Clamp 300 can be installed on balcony edges as brackets for the edge protection. This clamp is good for a balcony thickness of 300 mm and has an integrated bracket for Post 1,3 m. Depending on the measurements of the balcony, Barrier 2,6, Barrier 1,3 or Barrier 1,95 is then installed on the post.
• Width span 0 – 300 mm.
• Vertical or horizontal installation.
• Delivered with movable post holder.
• Several installation alternatives.
• Hot dip galvanized.
• Weight 5,4 kg.
• 50 pieces delivered in stacking stillage.
Art. No. 912245
Beam bracket wood is used for installing collective fall protection on wooden beams in form systems at vaults cast in site. The bracket is installed together with posts and barriers.
• Integrated post lock.
• Hot dip galvanized.
• Quick screw lock.
• Weight 4,0 kg, 2,3 kg.
PRIMARY – Art. No. 912168
SECONDARY – Art. No. 912169
Beam bracket alu is used to install edge protection on aluminium beams in form systems at slabs cast in site. The brackets is installed together with posts and barriers.
• Integrated post lock.
• Hot dip galvanized.
• Quick screw lock.
• Delivered in stacking stillage.
• Weight 3,0 kg, 2,3 kg.
PRIMARY – Art. No. 912170
SECONDARY – Art. No. 912171
Post foot is used as a bracket to install safety barriers at construction sites. It has several bolt alternatives and is installed with c/c up to 2,4 m. It is designed with integrated post lock and is hot dip galvanized. The foot can be used with Cast protection (art. no. 911140).
• Weight 1,1 kg.
• 100 pieces delivered in stacking box stillage.
Art no. 912105
Clamp 550 can be used as a bracket for temporary edge protection on stairs and slab edges. By using this clamp the process of making holes is eliminated when installing edge protections. The clamp can be swivelled and turned around and be installed in one simple operation without damaging the sensitive surface. The clamp has an integrated bracket for Post 1,3 m and Adjustable link bars are installed on the posts.
• Width span 25 – 550 mm.
• Several installation alternatives.
• Swivelling 360 deg. and reversible.
• Handles all stair angles.
• Hot dip galvanized.
• Weight 7,8 kg.
• 30 pieces delivered in stacking box stillage.
Art. No. 912220
With a structure framework cast-in-site there is the possibility of designing attachment points for the edge protection. Socket with rebar and integrated post lock, for example, can be cast into the wall tops in, for instance, house gables, lift- and stair shafts. After this posts and safety barriers are installed.
• For building structures cast in place.
• Integrated post lock.
• Length of reinforcement 400 mm.
• Delivered with plastic lid.
Art. No. 911114
The Precast socket wall is designed and cast into the wall element at the factory. This solution creates fast mounting of safety barriers and offers a free working space. Can also be used for casting in other prefabricated concrete constructions, to create attachments for edge protection in the outer slab edge.
• Length 450 mm.
• Integrated post lock.
• Delivered with plastic cover.
• Weight 1,8 kg.
Art. No. 911200
Precast attachments – overview
