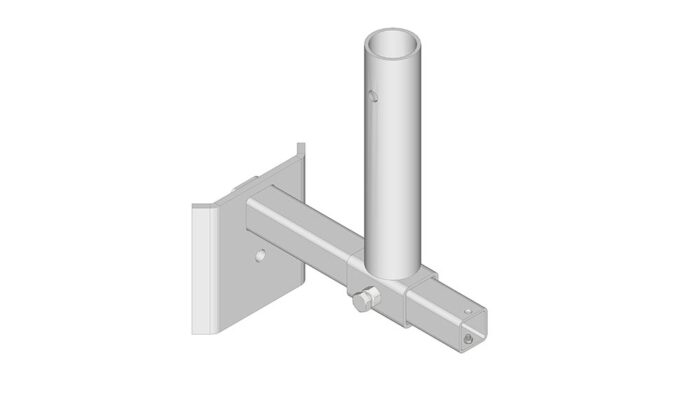

The VT Steelweb, round, allows a clear cantilever of the edge protection of up to 250 mm and is used to hold an edge protection post. It is attached to walls, ceilings and steel beems.

5040010
4.6 kg
EN 13374, class A
hot-dip galvanised (HDG)
325 x 419 mm

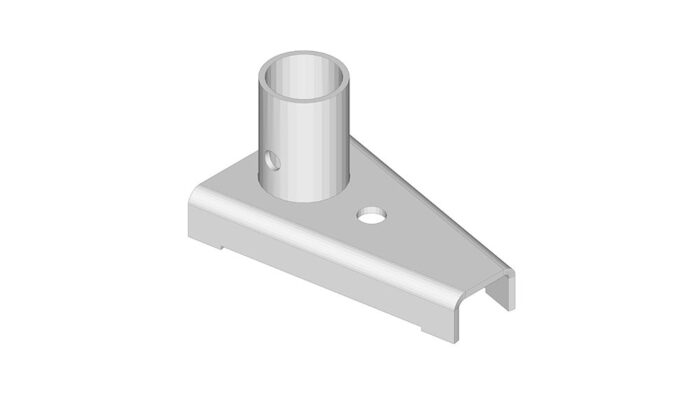

The VT foot, round, is used to hold an edge protection post, suitable for installation on all flat surfaces – ideally on in-situ concrete. This horizontal attachment can be fixed with various screws.

5040002
1.5 kg
EN 13374, class A
hot-dip galvanised (HDG)
200 x 110 mm

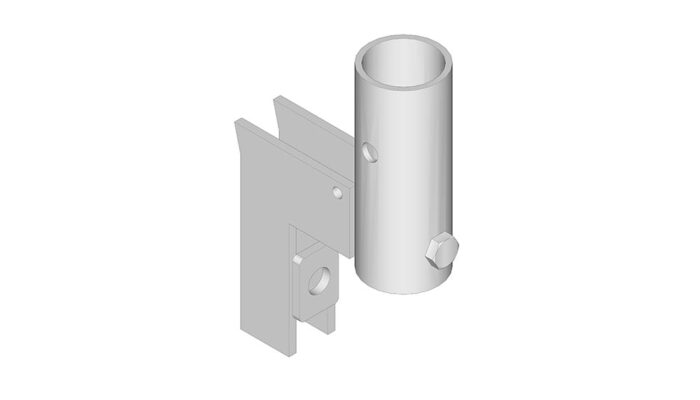

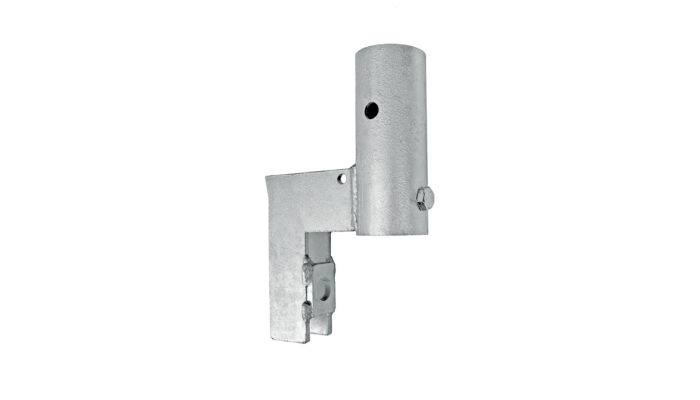

The VT Edge 95, round, is mainly used to reliably secure the edges of stairs. The cantilever of the post to be used is 95 mm and therefore enables work to be carried out safely on the stairs.

5040006
1.7 kg
EN 13374, class A
hot-dip galvanised (HDG)
238 x 155 mm

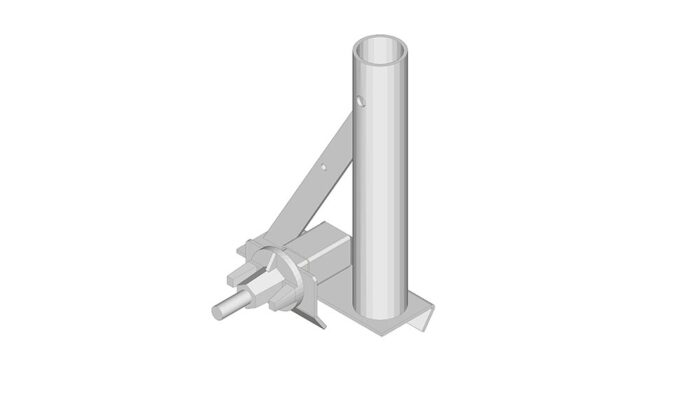

The VT Alu Beam Clamp, round, is used to hold an edge protection post on aluminium formwork beams. For assembly, the clamp is simply placed on the formwork beam and fixed.

5041006
4.0 kg
EN 13374, class A
hot-dip galvanised (HDG)
346 x 212 mm
