Adjustable post holder

Adjustable post holder

Adjustable post holder

Adjustable post holder is used when the edge protection needs to be adjusted to different locations during the course of a project. The holder is part of SafetyRespect’s Hall system which is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports and commerce.

A starting position can be set during roofing and the adjustment is easily done when wall elements are to
be mounted, or when working with crown lights, hangers etc. The possibility of adjustment allows the safety to be maintained at the same high level throughout the construction process.

• Hot dip galvanized.
• Weight 7,9 kg.

Art. no. 911126

Product sheet

Fall protection Hall system with adjustable post holder

Hall system with adjustable post holder

Hall system with adjustable post holder

Fall protection Hall system with adjustable post holder

Fall protection Hall system with adjustable post holder

Adjustable edge protection on hall constructions

Fall protection Hall system with adjustable post holder

Adjustable post holder is used when the edge protection needs to be adjusted to different locations during the course of a project. A starting position can be set during roofing and the adjustment is easily done when wall elements are to be mounted, or when working with crown lights, hangers etc. The possibility of adjustment allows the safety to be maintained at the same high level throughout the construction process.

PRODUCTS
• Adjustable post holder
• Post 1,3 m
• Attachment
• Barrier alu 3 m
• Joint pin
• Rod 20 complete 0,5 m, 1,0 m
• Barrier bracket wedge coupler
• Double coupler swivelling
• Coupler bracket

Hall system with adjustable post holder

Hall system with adjustable post holder

Fall protection Hall system with adjustable post holder

compression post 2,2-3,5m

Compression post 2,2-3,5 m

compression post 2,2-3,5m

Compression post is used as for installing edge protection between concrete slabs and other situations at construction sites. Utilizing the Compression post together with Barrier and Containment net a fully covered opening can be achieved. The containment net stops debris and material from entering or exiting the floor and the Barrier acts as collective fall protection. The Compression post is easy to install by extending the inner pipe to the ceiling and then activating the compression function by a foot pedal.

• Tool free installation.
• Adjustable length 2,2-3,5 m (7’2”-11’5”).
• Tension load (FT) 100-150 kg.
• Fits with various barrier brackets.
• Hot dip galvanized.
• Weight 10,5 kg.
• EN 13374 A, OSHA 1926.502 (B).
• Delivered 50 pcs in stackable pallet.

Art.no. 913151

Product sheet

Compression post with barriers as temporary edge protection on concrete slab

Compression post with barriers as temporary edge protection on concrete slab

compression posts and barriers as fall protection at construction site

compression posts and barriers as fall protection at construction site

compression posts and fall protection SafetyRespectcompression postcompression post

Roof base

standing_seam_bracket_safetyrespect_5

On roof base and cover with double seam the Standing seam bracket can be used as attachment for the temporary edge protection. The bracket can be adjusted to four positions for roof inclinations from 5 to 40 degrees. The Standing seam bracket is installed so that the seam lock gets a grip under the seam. The sheets must be of good quality and be well fastened against the roof construction. On roof bases the Standing seam bracket is installed above the roof frame with wood screws.

PRODUCTS
• Standing seam bracket
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

Gables

flex_roof_gable_bracket_safetyrespect_9822

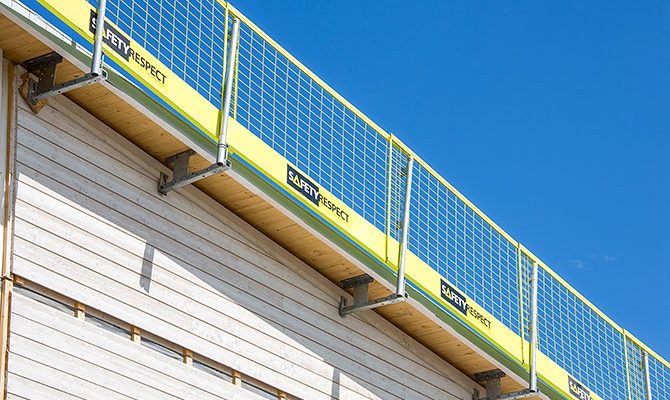

At the gables the Flex gable bracket can be installed as an attachment, which also creates a free working area. The distance between the facade and the edge protection can be adjusted during ongoing work. The attachment can be done in the roof base.

PRODUCTS
• Flex gable bracket
• Flex working platform
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6
