Fence hot dip galvanized

Fence hot dip galvanized

Fence hot dip galvanized

Fence for blocking and temporary enclosures at construction sites, traffic environments, events etc. The system is designed with integrated hooks and loops for ergonomic and cost-effective handling. The fence is hot dip galvanized, designed to meet demanding environments and can be placed in several angles. We also offer custom profiling with powder coating in desired color and logotype. Weight 16 kg, 19 kg, 23 kg.

PRODUCT OVERVIEW

Hot dip galvanized:
• Fence 1,8 m art. no. 983141
• Fence 2,5 m art. no.983142
• Fence 3,2 m art. no. 983143

Galvanized and powder coated:
• Fence 1,8 m art.no. 983151
• Fence 2,5 m art.no. 983152
• Fence 3,2 m art.no. 983153

Accessories:
• Flat foot art.no. 983201
• Angle foot art.no. 983202
• Block foot art.no. 983203
• Toe board holder art.no. 983401

Product sheet

Guard rail system

Block foot guard fence

Guard rail system

Barrier powder coated

Barrier powder coated

Barrier powder coated

Barrier for blocking and temporary enclosures at construction sites, traffic environments, events etc. The system is designed with integrated hooks and loops for ergonomic and cost-effective handling. It is designed to meet demanding environments and can be equipped with reflexes for increased visibility. We also offer custom profiling with powder coating in desired color and logotype.

Barrier 1,8 m
Part No. 983131
Galvanized and powder coated.
Weight 13,5 kg (29 lb 12 oz).

Barrier 2,5 m
Part No. 983132
Galvanized and powder coated.
Weight 17,5 kg (38 lb 9 oz).

Barrier 3,2 m
Part No. 983133
Galvanized and powder coated.
Weight 22,0 kg (48 lb 8 oz).

Product sheet

Guard rail system

Flat foot guard rail system

box stillage

Box stillage

box stillage

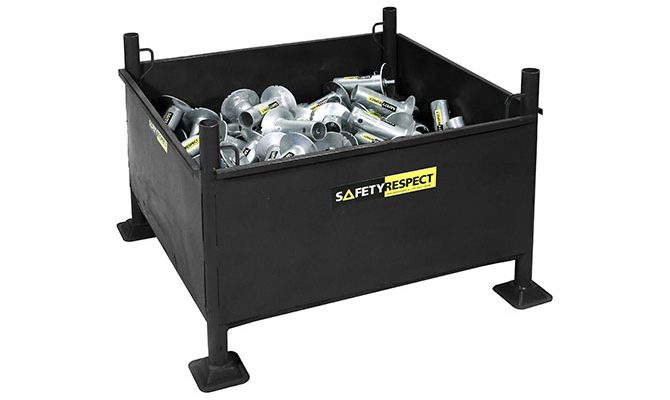

Box stillage for storing and transporting edge protection products. It is important that the logistics at a working site function and that the edge protection is easily accessible when required. Our products are delivered in stacking stillages that minimise the area needed. The stillages can be lifted either by forklift or crane. Lifting instructions are available.

• Maximum load 800 kg
• Dimensions: L 1030 mm, W 910 mm, H 650 mm

Art. No. 981130

Product sheet

Edge protection shaft opening

Barriers at wall openings

shaft_openings_safetyrespect_5597

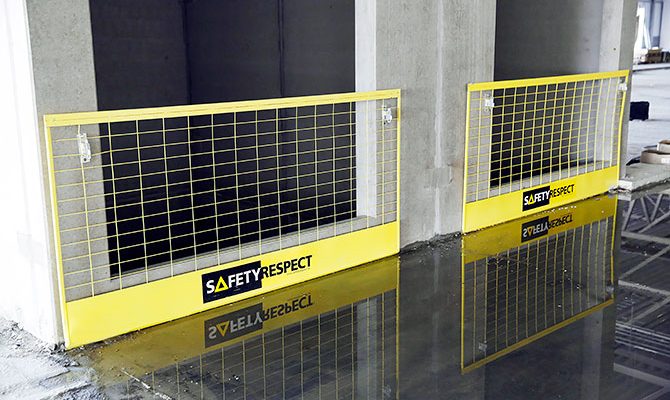

Wall brackets and barriers can quickly and easily secure wall openings. Using this attachment there is no need for posts and attachment in the slab. The solution makes it simple and fast to open and close the edge protection. Casting is facilitated and one advantage is that repair of edge protection attachments are not required. This solution creates a tighter edge protection in comparison to using adjustable link bars. It is quick and easy to install and uninstall when various kinds of work task are to be carried out.

PRODUCTS
• Wall bracket
• Barrier 1,3, 1,95, 2,6
• Barrier bracket 360

shaft_openings_safetyrespect_4

shaft_openings_safetyrespect_0865

shaft_openingssafetyrespect_

shaft_openings_safetyrespect_086

Edge protection stairs

Socket base on the stairs

stairs_safetyrespect_3447c

The Socket base can be used as attachment of edge protection in stairs. The Socket base has an integrated bracket for Post 1,3 m. Adjustable link bars are installed on the posts.

PRODUCTS
• Socket base
• Post 1,3 m
• Adjustable link bar
• Barrier bracket 360

stairs_safetyrespect_3406

stairs_safetyrespect_3504

stairs_safetyrespect_3482

stairs_safetyrespect_3471

stairs_safetyrespect_3471c

Edge protection floor opening

Floor openings

openings_safetyrespect_069

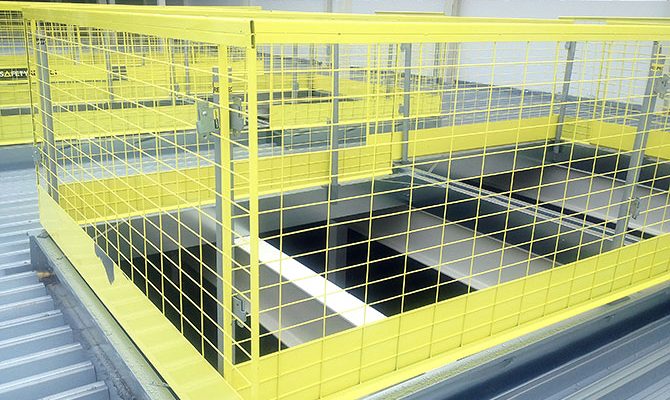

Openings in slabs and shafts are sometimes changed and must be secured against falls during the construction process. Floor openings should be considered as an open slab edge and be secured with collective fall protection. For this you can use an attachment such as Socket base or Vertical bracket, and Post 1,3 m and Barriers. Barrier bracket 360 should be mounted in the corners as an attachment for Barriers in all directions.

PRODUCTS
• Socket base
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
• Barrier bracket 360

openings_safetyrespect_066

Cast in socket M16 for edge protection

Wall elements with sockets cast into the facade

Cast in socket M16 for edge protection

Cast in socket M16 is an attachment that is designed in a wall element that enables fast and safe installation of collective fall protection on the facade. A dialogue takes place between the manufacturer of the prefabricated material and SafetyRespect’s technical division as to recommendations of edge protection solutions, positioning of cast in sockets, pull out loads, laws and regulations.

PRODUCTS
• Cast in socket M16
• Recommended bracket
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

Facade bracket for edge protection

cast_in_socket_m16_safetyrespect

Working platform with edge protection

Frame barrier 2,6 alu

Frame barrier 2,6 alu

Frame barrier 2,6 alu

The Frame barrier enables operations to be performed that require hands to be outside the safety raling with no risk of falling. It is an easy-to-use barrier designed in powder coated aluminium. Raising individual barriers is possible if required. It has an integrated toe board on which custom profiling can be placed.

• Easy installation without tools.
• Easily raised and lowered on posts.
• Integrated toe board 150 mm.
• Welded frame construction.
• EN13374 – Class A.
• Weight 10,3 kg.
• 27 pieces delivered in stacking stillage.

Art.no. 913141

Product sheet

Frame barrier edge protection

Frame barrier edge protection

Frame barrier edge protection

Frame barrier holder edge protection

Frame barrier edge protection
