Side plate 140x140

Side plate 140×140

Side plate 140x140

Side plate is used when attaching brackets for temporary safety barriers on hall buildings. SafetyRespect Hall system is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports, events and commerce. The system has several attachment alternatives and can handle long spans between the attachment points. The system consists of safety barriers of aluminium and smart components that offer rapid and safe installation.

Art. no. 914155

Product sheet

Fall protection Hall system with adjustable post holder

Centre plate 140x140

Centre plate 140×140

Centre plate 140x140

Centre plate is used for attachment of Hall System as edge protection on hall constructions.

Art. no. 914154

Product sheet

Fall protection Hall system with adjustable post holder

Joint pin barrier

Joint pin barrier

Joint pin barrier

Joint pin barrier is used for jointing Barrier alu 3 m, as temporary edge protection on hall buildings. SafetyRespect Hall system is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports, events and commerce. The system has several attachment alternatives and can handle long spans between the attachment points. The system consists of safety barriers of aluminium and smart components that offer rapid and safe installation.

Art. No. 914150

Product sheet Barrier alu 3 m

hall_system_safetyrespect_5371

Fall protection Hall system

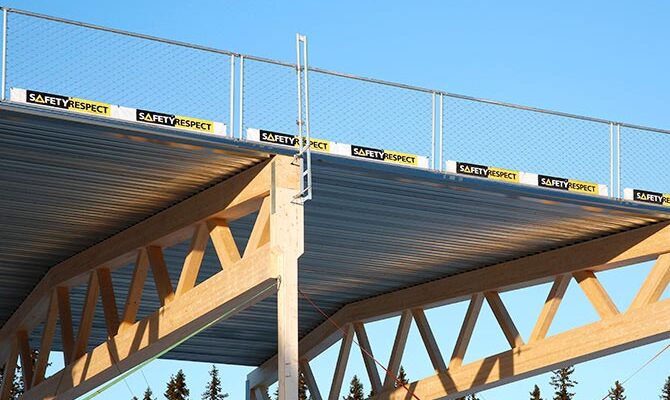

Post 2-5 m alu

Post 2,5 m alu

Post 2-5 m alu

Post 2,5 m alu is used when installing SafetyRespect’s Hall System to enable adjustment of the position of the edge protection. A quite common building method of hall constructions is that the wall elements are placed past the roof and create a border, something that requires indoor drainage. As to the edge protection a solution using a straight post installed to the attachment may be the best alternative. We can offer several different post options to handle large spans.

• Aluminium pipe 48,3 x 4,0 mm.
• Weight 7,8 kg.
• 100 pieces delivered in stacking stillage.

Art. no. 911121

Product sheet

hall system fall protection attachment

Fall protection Hall system

hall system attachment fall protection steel

Temporärt fallskydd monterat på hallbyggnad

Temporärt fallskydd monterat på hallbyggnad



Rod 20 complete

Rod 20 complete is used when installing SafetyRespect Hall system. The system is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports, events and commerce. The system has several attachment alternatives and can handle long spans between the attachment points. The system consists of safety barriers of aluminium and smart components that offer rapid and safe installation.

Rod 20 complete 0,5 m – Art. No. 914156
Rod 20 complete 1,0 m – Art. No. 914157

Product sheet

hall system attachment fall protection steel

hall system attachment fall protection concrete

hall system fall protection attachment

Adjustable post holder

Adjustable post holder

Adjustable post holder

Adjustable post holder is used when the edge protection needs to be adjusted to different locations during the course of a project. The holder is part of SafetyRespect’s Hall system which is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports and commerce.

A starting position can be set during roofing and the adjustment is easily done when wall elements are to
be mounted, or when working with crown lights, hangers etc. The possibility of adjustment allows the safety to be maintained at the same high level throughout the construction process.

• Hot dip galvanized.
• Weight 7,9 kg.

Art. no. 911126

Product sheet

Fall protection Hall system with adjustable post holder

Hall system with adjustable post holder

Hall system with adjustable post holder

Fall protection Hall system with adjustable post holder

Barrier alu 3 m

Barrier alu 3 m is used when installing Hall system as temporary edge protection on hall building constructions. SafetyRespect Hall system is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports, events and commerce. The system has several attachment alternatives and can handle long spans between the attachment points. The system consists of safety barriers of aluminium and smart components that offer rapid and safe installation.

• Can easily be raised and lowered on the posts.
• Stable frame construction of 48,3 mm aluminium pipe.
• Integrated toe board 225 mm.
• Weight 22 kg.
• 14 pieces delivered in stacking stillage.

Art. No. 910122

Product sheet

Fall protection Hall system

Fall protection Hall system with adjustable post holder

Hall system with adjustable post holder

Fall protection Hall system

Installation with straight posts on hall constructions

Fall protection Hall system

A quite common building method of hall constructions is that the wall elements are placed past the roof and create a border, something that requires indoor drainage. As to the edge protection a solution using a straight post installed to the attachment may be the best alternative. We can offer several different post options to handle large spans.

PRODUCTS
• Barrier alu 3 m
• Joint pin
• Post 2,5 m alu
• Attachment
• Rod 20 complete 0,5 m, 1,0 m
• Barrier bracket wedge coupler
• Double coupler swivelling
• Coupler bracket

hall system fall protection attachment

hall system attachment fall protection steel

hall system attachment fall protection concrete

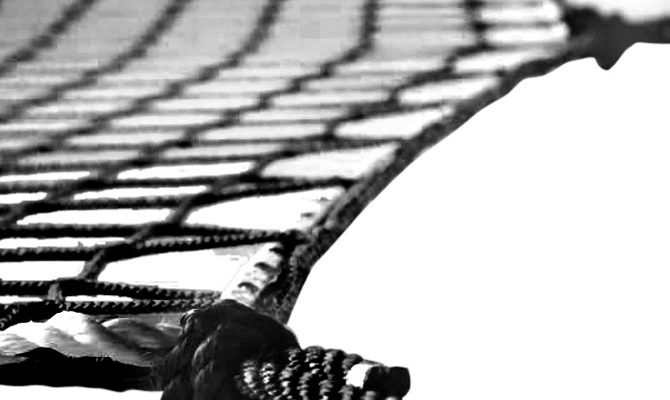

Fall protection net

Fall protection net is used as edge protection at construction sites to catch both people and materials that may fall. The net is available in a variety of sizes and designs and and the attachment is done with a rope or with a so called Grippa in, for example, a roof girder construction. The fall protection net offers both flexibility and safety, which results in increased efficiency when working at great heights. When positioned correctly the protection net is also used to catch falling objects such as waste material, tools, building parts, equipment, etc. The protection net also reduces the feeling of great height, which means that possible fear of heights of the workers is reduced. This creates a feeling of safety with increased efficiency as a result.

Fall protection net 10 x 12 – Art. No. 941010
Fall protection net 8 x 12 m – Art. No. 941011
Fall protection net 8 x 10 m – Art. No. 941012

Product sheet Fall protection net

Product sheet Grippa

platform console 55 mm for creating safe platforms and working decks in lift shafts

Platform console 55 mm

platform console 55 mm for creating safe platforms and working decks in lift shafts

When you want to create a safe platform/working deck in a lift shaft you should use Platform consoles that are fastened to the inside of the shaft wall. When the platform consoles have been installed, grade timber of correct dimensions should be used to create the platform level.

• Bracket that creates flats at openings and shafts.
• Installed with console tenon.
• Maximum load 1,000 kg/console.
• Weight 1,4 kg.

Art. No. 930089

Product sheet

shaft_platform_safetyrespect_5774
