Joint pin is used for jointing aluminum pipes that is used as temporary edge protection at construction sites.
Art. No. 914152
Joint pin
Tag: edge protection
Weld nut 20
Weld nut 20 is used for attachment of Hall system as edge protection on steel constructions. The system is developed for flat roofs and gently inclined roofs, such as building constructions for industry, sports, events and commerce. The system has several attachment alternatives and can handle long spans between the attachment points. The system consists of safety barriers of aluminium and smart components that offer rapid and safe installation.
Weld nut 20
Art. no. 914148
Weld nut cylindrical
Art. no. 914147
Product sheet Weld nut 20
Edge protection for bridges
SafetyRespect saves lives with fall protection installed on several bridges being built around Europe and North America. Our flexible attachment solutions make it possible to mount temporary edge protection on most bridge structures.
In building constructions that consists of wooden beams, the Wood beam clamp can be used as attachment for the edge protection. The bracket has integrated post lock and fits beam dimensions of 45 x 120 – 220 mm. It is designed for a flexible mounting and can be easily adjusted as needed. When the bracket has been mounted on the beams, then Post 1,3 m and Barrier 2,6 are mounted. Post foot and Clamp 550 are examples of other brackets that can be used on some bridge constructions. Posts are then mounted in the brackets and after that barriers.
PRODUCTS
• Wood beam clamp
• Post foot
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6
The interest in SafetyRespect’s fall protection is increasing in Estonia
In Estonia, the interest in SafetyRespect’s products and services is increasing and more and more construction companies are using our fall protection. One of the largest projects to date is in the port area of Noblessner in Tallinn, where five residential buildings with 161 apartments and 14 commercial premises are being built by AS Merko Ehitus Eesti.
Once a submarine shipyard, it has now evolved into a stylish and modern seaside urban area. Noblessner is situated near the Seaplane Harbour within a walking distance from Tallinn city center and has been recognised as one of the best urban development in the Baltic countries.
Here you can find more information about the project: https://merko.ee/noblessner/vesilennuki/en
Published March 24, 2022.
Post 1,5 m alu
Post 1,5 m alu is used for installing barriers as collective edge protection on construction sites. Made of aluminum pipe 48,3 x 4,0 mm with integrated post lock.
• Weight 3,2 kg.
• 100 pieces delivered in stacking stillage.
Art.no. 911116

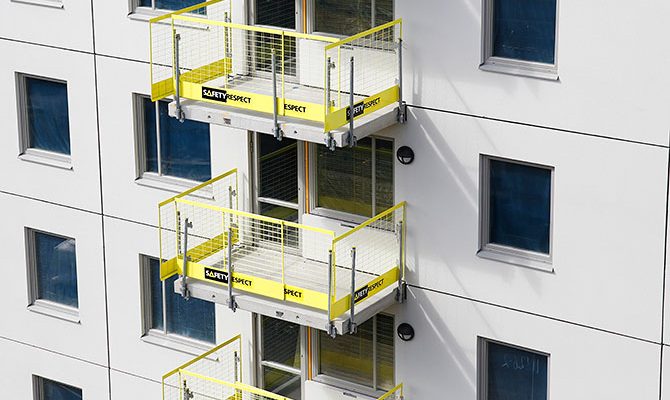

Brackets on balcony edges
The ordinary attachment for the balcony railing can be used for attaching edge protection. Here you can use Balcony bracket or Vertical bracket. After this, Post 1,3 m is installed together with Barrier 2,6, Barrier 1,3 or Barrier 1,95 in order to adapt the edge protection according to the dimensions of the balcony.
PRODUCTS
• Balcony bracket
• Vertical bracket
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
Link bars at wall openings
The wall openings should be secured with edge protections. Wall brackets on each side of the opening together with Adjustable link bars should be used. The Adjustable link bars are available in three different sizes for openings from 0,5 metres up to 2,5 metres. This solution makes it easy to remove and put back the edge protection when various types of work is to be carried out, and it also leaves space for different types of lead-throughs.
PRODUCTS
• Wall bracket
• Adjustable link bars

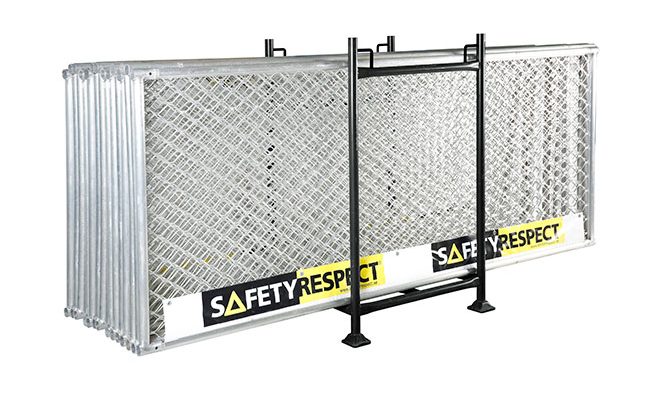

Barrier stillage vertical
Stillage for storing and transporting safety barriers. It is important that the logistics at a construction site function and that the edge protection is easily accessible when required. Our products are delivered in stacking stillages that minimise the area needed. The stillages can be lifted either by forklift or crane. Lifting instructions are available.
• Maximum load 800 kg
• Dimensions: L 1030 mm, W 910 mm, H 1450 mm
Art. No. 981111
Box stillage
Box stillage for storing and transporting edge protection products. It is important that the logistics at a working site function and that the edge protection is easily accessible when required. Our products are delivered in stacking stillages that minimise the area needed. The stillages can be lifted either by forklift or crane. Lifting instructions are available.
• Maximum load 800 kg
• Dimensions: L 1030 mm, W 910 mm, H 650 mm
Art. No. 981130
Safety fan wall
SafetyRespect Safety fan system for walls is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system is adapted to be installed on a vertical surface without any need of cranes and with the edge protection mounted freestanding on the working area.
Art. No. 914016
