Roof base

standing_seam_bracket_safetyrespect_5

On roof base and cover with double seam the Standing seam bracket can be used as attachment for the temporary edge protection. The bracket can be adjusted to four positions for roof inclinations from 5 to 40 degrees. The Standing seam bracket is installed so that the seam lock gets a grip under the seam. The sheets must be of good quality and be well fastened against the roof construction. On roof bases the Standing seam bracket is installed above the roof frame with wood screws.

PRODUCTS
• Standing seam bracket
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

Gables

flex_roof_gable_bracket_safetyrespect_9822

At the gables the Flex gable bracket can be installed as an attachment, which also creates a free working area. The distance between the facade and the edge protection can be adjusted during ongoing work. The attachment can be done in the roof base.

PRODUCTS
• Flex gable bracket
• Flex working platform
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

flex_eave_bracket_safetyrespect_9820

Fall protection on house facade

Facades

Fall protection on house facade

In order to create a free working space on roofs Flex facade bracket can be used as an attachment of edge protection. The distance between the facade and collective edge protection can easily be adjusted during ongoing work. Flex facade bracket is available in three different lengths to suit most situations and if the attachments are projected early in the process, the installation is quick and smooth, with high safety. Flex working platform can also be a solution that provides good protection without being in the way of work near the edge of the work surface.

PRODUCTS
• Flex Facade bracket
• Flex working platform
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

Fall protection on house facade

Working platform with fall protection

SafetyRespect Flex working platform

SafetyRespect Flex working platform

Working platform with fall protection

Working decks and platforms in lift shafts

shaft_platform_safetyrespect_5774

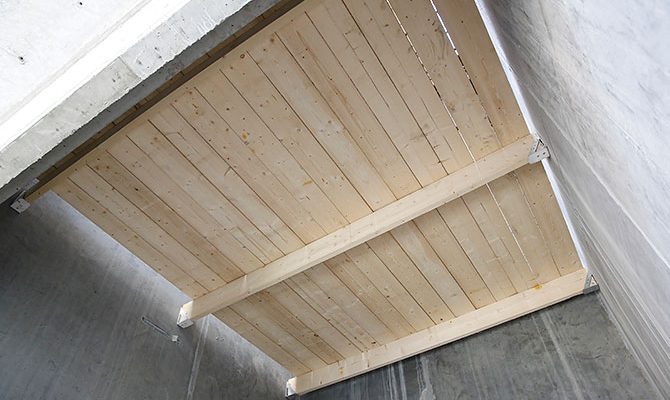

When you want to create a platform/working deck in a lift shaft you should use Platform consoles that are fastened to the inside of the shaft wall. When the plateau consoles have been installed, grade timber of correct dimensions should be used to create the platform.

PRODUCTS
• Platform console

shaft_platform_safetyrespect_5774cplatform_console_safetyrespect

Building hoists and stair towers

elevator_safetyrespect_5175cc

It is important to create safe access to slabs at the working site in connections between building hoists and stair towers. SafetyRespect’s fall protection products are compatible with most common scaffold brands and stair towers.

PRODUCTS
• Barrier bracket wedge coupler
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
• Adjustable link bar
• Double coupler swivelling

elevator_safetyrespect_5175c

elevator_safetyrespect_5175ccc

stair_towers_safetyrespect_5209x

Stair tower edge protection

Building hoist, stair tower and edge protection

Building hoist and edge protection

Edge protection shaft opening

Shaft openings

shaft_openings_safetyrespect_086

Before the elevator is installed in the shaft the opening should be protected against falls with collective fall protection. It is also important to protect the elevator installer and other professionals working in the shaft against falling objects. Shaft openings can quickly and easily be secured using Wall bracket and Barrier. The solution works as a gate as well. With this attachment there is no need for posts and customary attachment on the slab. This gives great advantage as repair of edge protection attachments is not required on the slab.

PRODUCTS
• Wall bracket
• Barrier 1,3, 1,95, 2,6
• Barrier bracket 360

shaft_openings_safetyrespect_4

shaft_openingssafetyrespect_

shaft_openings_safetyrespect_0865

shaft_openings_safetyrespect_5597wall_bracket_safetyrespect_1

Edge protection floor opening

Floor openings

openings_safetyrespect_069

Openings in slabs and shafts are sometimes changed and must be secured against falls during the construction process. Floor openings should be considered as an open slab edge and be secured with collective fall protection. For this you can use an attachment such as Socket base or Vertical bracket, and Post 1,3 m and Barriers. Barrier bracket 360 should be mounted in the corners as an attachment for Barriers in all directions.

PRODUCTS
• Socket base
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
• Barrier bracket 360

openings_safetyrespect_066

Pre-installed attachment on steel beams

beams_and_columns_safetyrespect_0075

When steel beams are used in the building construction a Welding socket with integrated post lock should be designed as an attachment of edge protection. In these cases the Welding socket is welded according to the instructions when producing the steel beams. When the beam has been lifted in place Post 1,3 m and Barrier 2,6 are mounted. The attachment of the edge protection will become both safer and faster with a pre-fabricated attachment such as this one.

PRODUCTS
• Welding socket
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

Edge protection installation on steel beams

Edge protection installation on steel structures

Welding socket for installing edge protection

Edge protection for prefabricated material

balconies_safetyrespect_6856

Edge protection solutions that are planned in consultation with both the product management and designers create the best conditions regarding economy, time and safety. Already at the designing stage we investigate things such as attachments for the edge protection in order to find solutions to the work tasks that are to be carried out by the different professional groups of people or subcontractors.

Prefabricated attachment for edge protection

Edge protection precast walls

Fall protection net for catching falling personnel

fall_protection_net_safetyrespect_2747c

The Fall protection net is available in a variety of sizes and designs and is used to catch both people and material. The attachment is done with a rope or a Net claw in, for example, a roof girder construction. The fall protection net offers both flexibility and safety, which results in increased efficiency when working at height. When positioned correctly the protection net is also used to catch falling objects such as waste material, tools, building parts, equipment, etc. The protection net also reduces the feeling of great height, which means that possible fear of heights of the workers are reduced. This creates a feeling of safety with increased efficiency as a result.

PRODUCTS
• Fall protection net 3 x 6 m
• Fall protection net 8 x 10 m
• Fall protection net 8 x 12 m
• Fall protection net 10 x 12 m
• Net claw double (Grippa 22 mm or 50 mm)

fall_protection_net_safetyrespect_2

fall_protection_net_safetyrespect_3

fall_protection_net_safetyrespect_4
