Block foot is used as ground support for our Guard rail system. Multiple holes for flexible
placement of guard rails. The Guard rail system is a stable, robust and fast mounted system for blocking and temporary enclosures, designed to meet demanding environments.
• Cut outs for toe board.
• Composit material.
• Weight 15 kg.
Art. no. 983203
Fence for blocking and temporary enclosures at construction sites, traffic environments, events etc. The system is designed with integrated hooks and loops for ergonomic and cost-effective handling. The fence is hot dip galvanized, designed to meet demanding environments and can be placed in several angles. We also offer custom profiling with powder coating in desired color and logotype. Weight 16 kg, 19 kg, 23 kg.
PRODUCT OVERVIEW
Hot dip galvanized:
• Fence 1,8 m art. no. 983141
• Fence 2,5 m art. no.983142
• Fence 3,2 m art. no. 983143
Galvanized and powder coated:
• Fence 1,8 m art.no. 983151
• Fence 2,5 m art.no. 983152
• Fence 3,2 m art.no. 983153
Accessories:
• Flat foot art.no. 983201
• Angle foot art.no. 983202
• Block foot art.no. 983203
• Toe board holder art.no. 983401
When you want to create a safe platform/working deck in a lift shaft you should use Platform consoles that are fastened to the inside of the shaft wall. When the platform consoles have been installed, grade timber of correct dimensions should be used to create the platform level.
• Bracket that creates flats at openings and shafts.
• Installed with console tenon.
• Maximum load 1,000 kg/console.
• Weight 1,4 kg.
Art. No. 930089

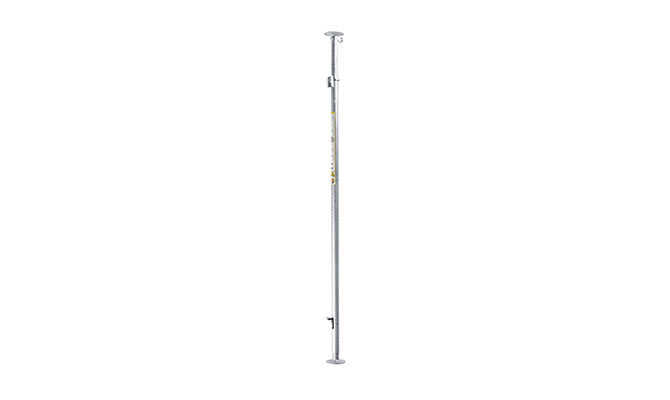

Compression post is used as for installing edge protection between concrete slabs and other situations at construction sites. Utilizing the Compression post together with Barrier and Containment net a fully covered opening can be achieved. The containment net stops debris and material from entering or exiting the floor and the Barrier acts as collective fall protection. The Compression post is easy to install by extending the inner pipe to the ceiling and then activating the compression function by a foot pedal.
• Tool free installation.
• Adjustable length 2,2-3,5 m (7’2”-11’5”).
• Tension load (FT) 100-150 kg.
• Fits with various barrier brackets.
• Hot dip galvanized.
• Weight 10,5 kg.
• EN 13374 A, OSHA 1926.502 (B).
• Delivered 50 pcs in stackable pallet.
Art.no. 913151

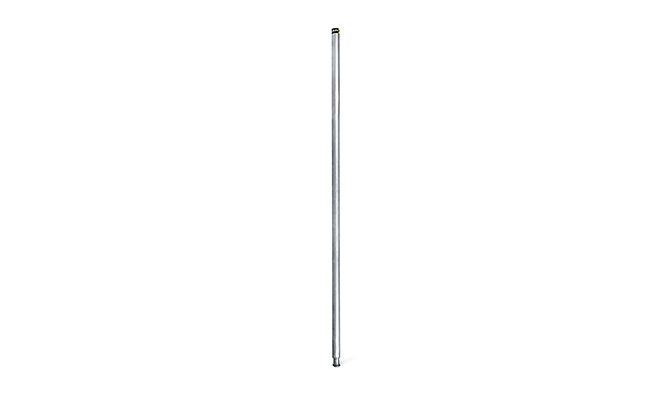

Post 1,5 m alu is used for installing barriers as collective edge protection on construction sites. Made of aluminum pipe 48,3 x 4,0 mm with integrated post lock.
• Weight 3,2 kg.
• 100 pieces delivered in stacking stillage.
Art.no. 911116

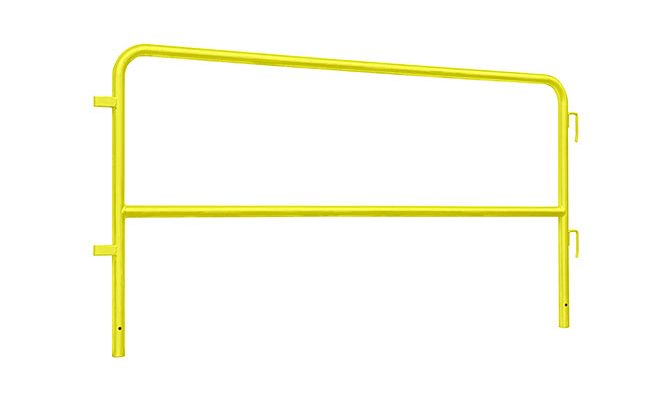

Guard rail for blocking and temporary enclosures at construction sites, traffic environments, events etc. The system is designed with integrated hooks and loops for ergonomic and cost-effective handling. It is designed to meet demanding environments and can be placed in several angles. We also offer custom profiling with powder coating in desired color and logotype.
Guard rail 1,8 m
Part No. 983101
Hot dip galvanized.
Weight 9,5 kg (20lb 15oz).
Guard rail 2,5 m
Part No. 983102
Hot dip galvanized.
Weight 12,0 kg (26lb 7oz).
Guard rail 3,2 m
Part No. 983103
Hot dip galvanized.
Weight 14,5 kg (31lb 15oz).
Guard rail for blocking and temporary enclosures at construction sites, traffic environments, events etc. The system is designed with integrated hooks and loops for ergonomic and cost-effective handling. It is designed to meet demanding environments and can be placed in several angles. We also offer custom profiling with powder coating in desired color and logotype.
Guard rail 1,8 m
Part No. 983111
Galvanized and powder coated.
Weight 9,5 kg (20lb 15oz).
Guard rail 2,5 m
Part No. 983112
Galvanized and powder coated.
Weight 12,0 kg (26lb 7oz).
Guard rail 3,2 m
Part No. 983113
Galvanized and powder coated.
Weight 14,5 kg (31lb 15oz).

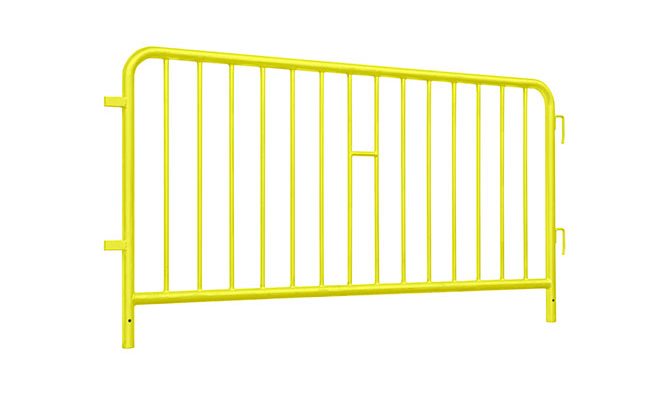

Barrier for blocking and temporary enclosures at construction sites, traffic environments, events etc. The system is designed with integrated hooks and loops for ergonomic and cost-effective handling. It is designed to meet demanding environments and can be equipped with reflexes for increased visibility. We also offer custom profiling with powder coating in desired color and logotype.
Barrier 1,8 m
Part No. 983131
Galvanized and powder coated.
Weight 13,5 kg (29 lb 12 oz).
Barrier 2,5 m
Part No. 983132
Galvanized and powder coated.
Weight 17,5 kg (38 lb 9 oz).
Barrier 3,2 m
Part No. 983133
Galvanized and powder coated.
Weight 22,0 kg (48 lb 8 oz).

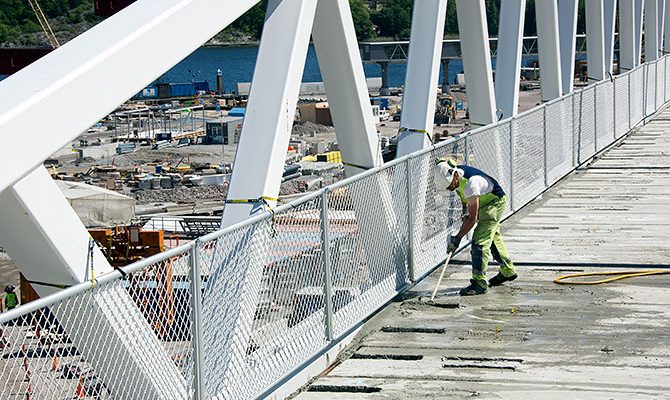

Making use of available columns or other structure elements for attachment enables work tasks on the slab to be completed freely and efficiently. The edge protection will be suspended on the columns above the working surface at a correct height, considering future work to be carried out. SafetyRespect’s Barrier alu 3 m can handle large spans and makes possible installation between columns. The Barriers are continuously jointed with Pipe joints or Pipe couplings without using any attachment on the slab. The Barriers can be raised so that they create a completely free working space required when applying a new surface layer, casting, etc.
PRODUCTS
• Barrier alu 3 m
• Joint pin
• Attachment

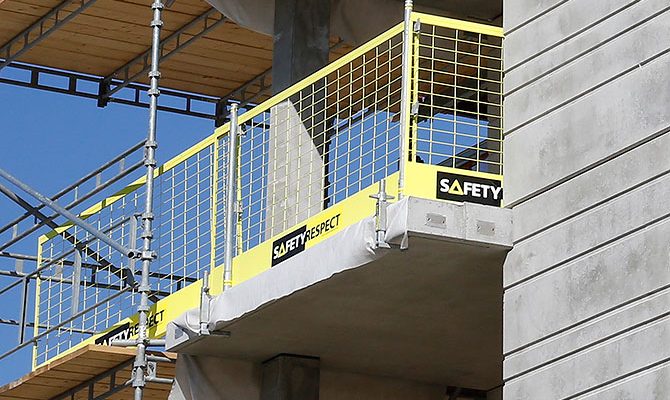

Clamp 300 can be installed on balcony edges as brackets for the edge protection. This clamp is suitable for a balcony thickness of 300 mm and has an integrated bracket for Post 1,3 m. Depending on the dimensions of the balcony, Barrier 2,6, Barrier 1,3 or Barrier 1,95 is then installed on the post.
PRODUCTS
• Clamp 300
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
Product sheet
