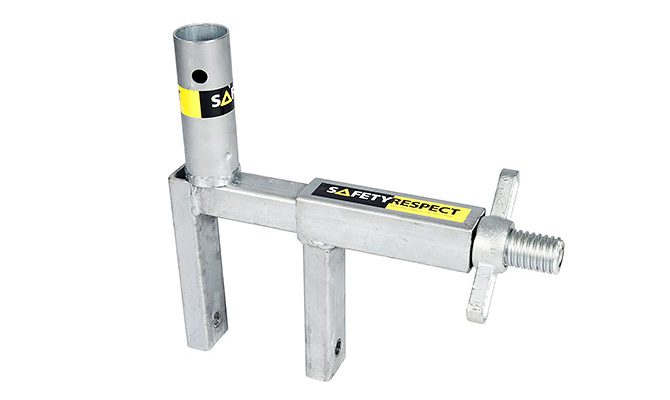

Clamp 300

Posted by safetyrespect on

Clamp 300 can be installed on balcony edges as brackets for the edge protection. This clamp is good for a balcony thickness of 300 mm and has an integrated bracket for Post 1,3 m. Depending on the measurements of the balcony, Barrier 2,6, Barrier 1,3 or Barrier 1,95 is then installed on the post.

• Width span 0 – 300 mm.
• Vertical or horizontal installation.
• Delivered with movable post holder.
• Several installation alternatives.
• Hot dip galvanized.
• Weight 5,4 kg.
• 50 pieces delivered in stacking stillage.

Art. No. 912245

Product sheet

Edge protection balcony

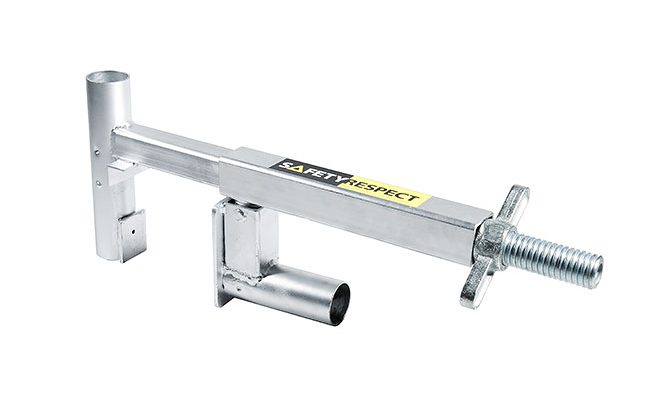

Clamp 550

Posted by safetyrespect on

Clamp 550 can be used as a bracket for temporary edge protection on stairs and slab edges. By using this clamp the process of making holes is eliminated when installing edge protections. The clamp can be swivelled and turned around and be installed in one simple operation without damaging the sensitive surface. The clamp has an integrated bracket for Post 1,3 m and Adjustable link bars are installed on the posts.

• Width span 25 – 550 mm.
• Several installation alternatives.
• Swivelling 360 deg. and reversible.
• Handles all stair angles.
• Hot dip galvanized.
• Weight 7,8 kg.
• 30 pieces delivered in stacking box stillage.

Art. No. 912220

Product sheet



stairs_safetyrespect_5621

clamp_safetyrespect_550_3472

stairs_safetyrespect_5630

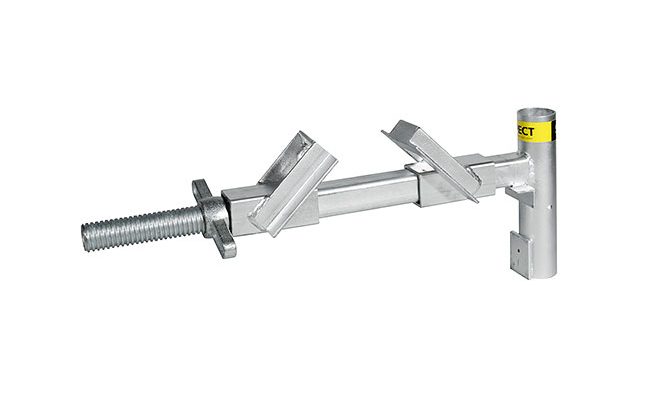

Steel beam clamp

Posted by safetyrespect on

On steel beams with a flange a Steel beam clamp can be mounted in order to quickly create an attachment for temporary edge protection. Using steel beam as attachment creates a free surface on the slab and can be used for other work tasks. The safety barriers will then be positioned outside the working space. The clamp is designed so that is has jaws that grip the steel beam profile. The steel beam clamp has an integrated attachment for posts. Barriers are installed directly onto the post lock and its height can easily be adjusted in order to facilitate different work tasks.

• Grips steel beams and posts with flanges up to 300 mm.
• Integrated post bracket.
• Robust and durable thread.
• Hot dip galvanized.
• Weight 6,3 kg.

Art. No. 912209



Product sheet

Temporary edge protection on steel beams

steel_beam_clamp_safetyrespect_5399

steel_beam_clamp_safetyrespect_5412

steel_beam_clamp_safetyrespect_013
