SafetyRespect Safety fan system for walls is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system is adapted to be installed on a vertical surface without any need of cranes and with the edge protection mounted freestanding on the working area.
Art. No. 914016
SafetyRespect Safety fan system for scaffolding is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system is adapted to be installed on most existing scaffold brands without any need of cranes and with the possibility of integrating SafetyRespect’s edge protection system. Pay attention to the increasing loads on the scaffolding.
Art. No. 914015
The Safety fan system for slabs is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system can be installed without any need of cranes and designed to be installed on floor structures, with the possibility of directly integrating SafetyRespect’s edge protection system.
Art. No. 914014

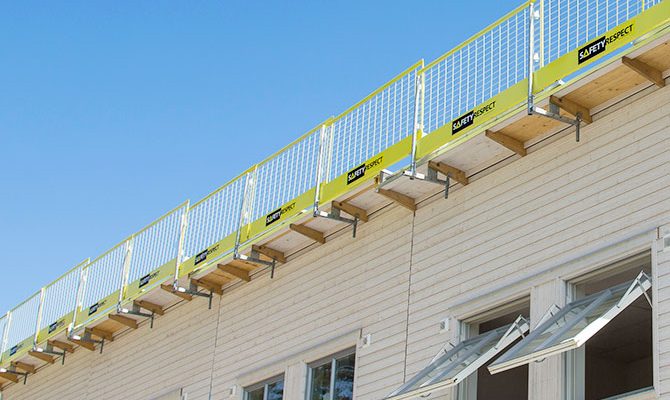

At the eaves, Flex eave bracket can be installed as an attachment for temporary edge protection. This solution enables a free working space and the distance between the facade and edge protection can be adjusted during ongoing work. The bracket is installed with a through bolt in the roof frame and supports even against the facade or the roof frame.
PRODUCTS
• Flex eave bracket
• Flex eave bracket with counterhold
• Flex working platform
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6
In order to create a free working space on roofs Flex facade bracket can be used as an attachment of edge protection. The distance between the facade and collective edge protection can easily be adjusted during ongoing work. Flex facade bracket is available in three different lengths to suit most situations and if the attachments are projected early in the process, the installation is quick and smooth, with high safety. Flex working platform can also be a solution that provides good protection without being in the way of work near the edge of the work surface.
PRODUCTS
• Flex Facade bracket
• Flex working platform
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6
Cast in socket M16 is an attachment that is designed in a wall element that enables fast and safe installation of collective fall protection on the facade. A dialogue takes place between the manufacturer of the prefabricated material and SafetyRespect’s technical division as to recommendations of edge protection solutions, positioning of cast in sockets, pull out loads, laws and regulations.
PRODUCTS
• Cast in socket M16
• Recommended bracket
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6
SafetyRespect Safety fan system for walls is a complement to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system is adapted to be installed on a vertical surface without any need of cranes and with the edge protection mounted freestanding on the working area.
PRODUCTS
• Alu beam 1500
• Alu pipe 6 m
• Net safety fan 3 x 6 m
• Double coupler swivelling
• Coupler 48-50
• Plate 140×140
• Coupler bracket
• Keyhole bracket

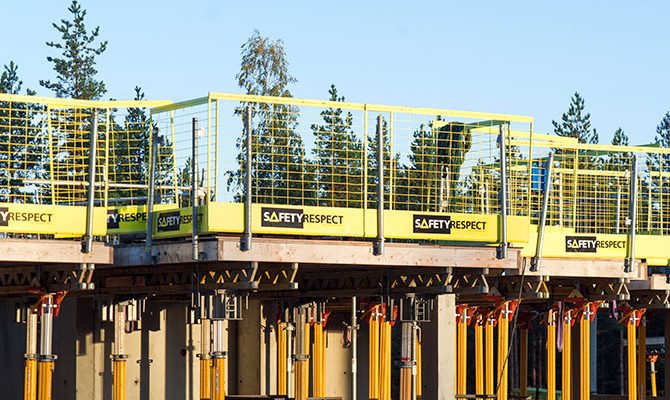

With a structure framework cast-in-site there is the possibility of designing attachment points for the edge protection. Socket w rebar with integrated post lock, for example, can be cast into the wall tops in, for instance, house gables, lift- and stair shafts. After this Post 1,3 m and Barrier are installed. Vertical brackets can be installed on the formwork as attachments, followed by Post 1,3 m and Barrier.
In order to be able to build external panel walls from inside the slab Balcony bracket 10 degrees can be installed as an attachment, which gives an inclination of the edge protection by approximately 10 degrees. For other requirements of edge protection such as stairs, window openings, etc., there are several solutions that can be designed and cast in order to facilitate installation of edge protection and to create safer working sites.
PRODUCTS
• Socket w rebar
• Balcony bracket 10 degrees
• Balcony bracket
• Vertical bracket
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
At the wall tops Socket W Rebar, with integrated post lock can be cast as attachments for edge protection.
Adjustable link bars are used as collective fall protection for stairs, shafts and openings. Wall openings should be secured with edge protections. Wall brackets on each side of the opening together with Adjustable link bars should be used. The Adjustable link bars are available in four different sizes for openings from 0,5 metres up to 2,5 metres. This solution makes it easy to remove and put back the fall protection when various types of work is to be carried out, and it also leaves space for different types of lead-throughs.
• Easily adjustable.
• Swivel brackets.
• Hot dip galvanized.
• Delivered in stacking stillage.
• Weight 9,0 kg, 6,2 kg, 4,3 kg, 3,0 kg.
Adjustable link bar 2,4-3,5 m – Art. No. 913330
Adjustable link bar 1,5-2,5 m – Art. No. 913320
Adjustable link bar 0,9-1,5 m – Art. No. 913321
Adjustable link bar 0,58-0,78 m – Art. No. 913322
Coupler bracket for installing the Safety fan on walls. Fits SafetyRespect’s different posts and aluminium pipes, as well as common scaffold brands.
Art. No. 915103
Product sheet
